Why NGRX Store?

In some cases, we need to manage the states inside a component, or even a global state to let our page render corresponding contents for users. NGRX uses store to save a current state, and component can get this live state via observeable variables(from Rxjs. In this way, the store isolate the state from the script of component. The NGRX doc is here.

Traditionally, we can use a variable as a member inside our component script and make this as a state flag, our code will review this variable and change their state during life cycle. But, to use NGRX can bring such advantages in my opinion:

You put state and state-changer, state-handler in an isolated place.
You will only have a interface to get/set state.
Easier to pass your state, and isolate effect from your pure functions.

To make our code more elegant and replaceable, we can use facade pattern based on a module.facade.ts , which will provide easy interfaces for components' script to control our store.

@ngrx/Store

A store is a 'holder' for current state, in our pattern we can use DI to get this store by us DI, and implement store in app.facade.ts.

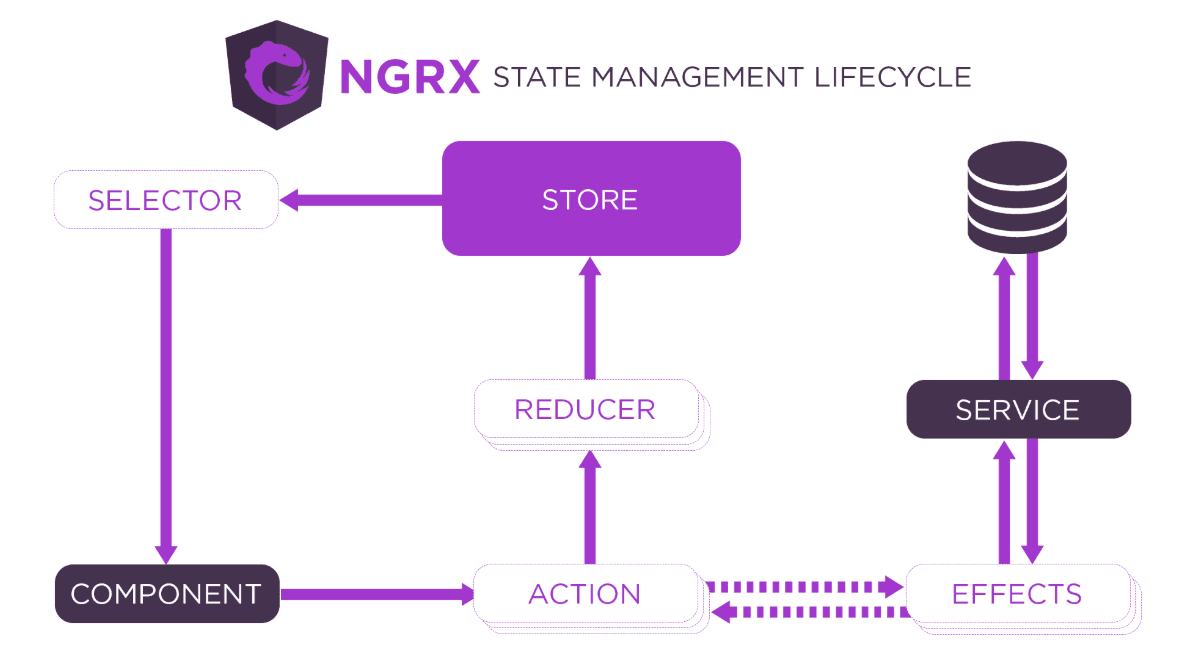

In our cases, our facade class will interact with selector and action, compared with the official image in follow.

Case study

Suppose we have a component showing a counter's value, it can call facade for 4 operations:

Get counter's value continuously from facade
Tell facade to increase counter
Tell facade to decrease counter
Tell facade to reset counter

Step 1: Action and state format

The first step is to define actions, which is the type of message our facade will dispatch, and the same message that will be caught by reducer and effect.

//module.actions.ts
import { createAction } from '@ngrx/store'

export const increment = createAction('[Counter Component] Increment')
export const decrement = createAction('[Counter Component] Decrement')
export const reset = createAction('[Counter Component] Reset')
export const error = createAction('[Counter Component] Fail', props<{ error: any }>())

Here we export 3 types of action, via given method createAction from ngrx, we can add a string as the comment as a attribution in this method.

Also we declare the format of state as AppState:

//component-state.model.ts
export interface AppState {
  counter?: number
}

Step 2: Reducer within Store

Notice that the action is just the ‘Message Carrier’, and reducer plays the role maintains the states:

//module.reducer.ts
import { createReducer, on } from '@ngrx/store'
import { increment, decrement, reset } from './counter.actions'
export const featureKey = 'somemodule'
export const initialState: AppState = {
  counter: 0,
} //Notice: reducer declare the initial state here

const _counterReducer = createReducer(
  initialState,
  on(increment, (state) => ({
    ...state,
    counter: state.counter + 1,
  })),
  on(decrement, (state) => ({
    ...state,
    counter: state.counter - 1,
  })),
  on(reset, (state) => ({
    ...state,
    counter: 0,
  }))
) //all action handler should be in `createReducer`'s parameters.

export function counterReducer(state, action) {
  return _counterReducer(state, action)
}

Step 3: Selector

Now the state was save in to store. here we only have one : initialState.counter = 0

//module.selector.ts
import { createSelector } from '@ngrx/store'

export const getState = createFeatureSelector<AppState>(featureKey)

const getCount = createSelector(getState, (state: AppState) => state.counter)
export const query = {
  getCount,
}

Component with Store

Imagine that the component script is the code behind our visual page, and the store is just like the code behind the code bind, and the facade works as the only interface. As for component, we have its html file, css file, and the component script, while as for the store, we need create these script file : action , reducer, effect, and selector:

Action: define type of action.

Reducer: Capture action dispatched, and replace store’s state. Also, it will init a default state for state.

Selector: Provided a pipe from store, and provided public query method to let other class get sync state.

Effect: Capture action dispatched, and do other things, like call api to send http request, or dispatch other action.

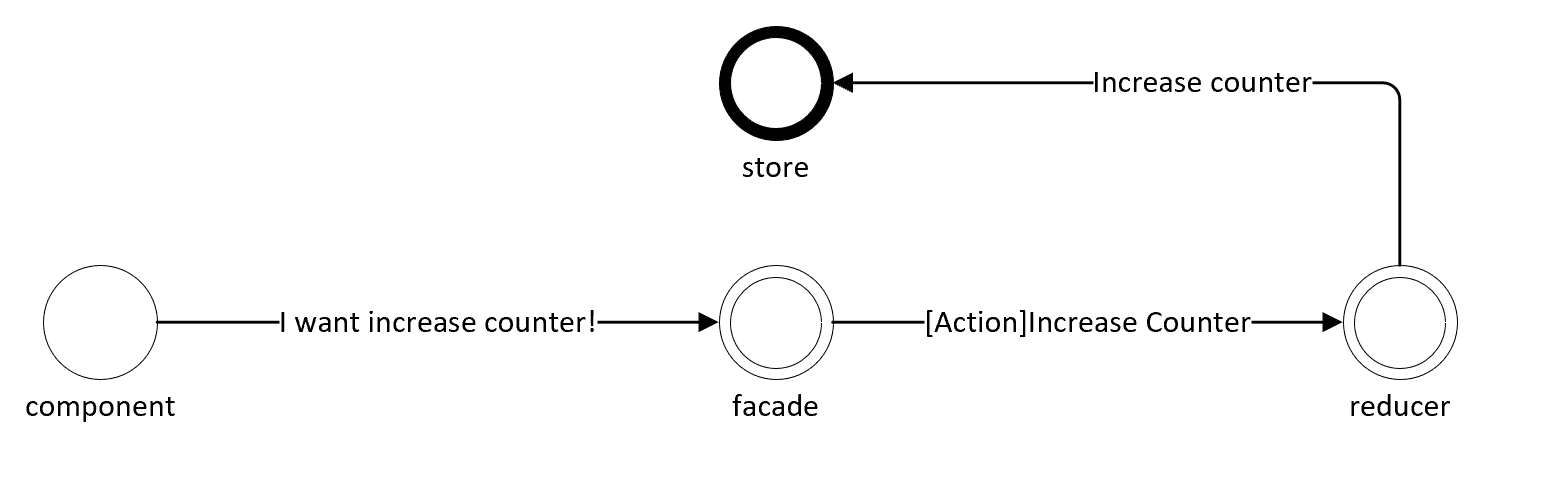

Set State

First let us review what state we have:

//component-state.model.ts
export interface AppState {
  counter?: number
}

To set a state, component script need to call facade’s method, and the latter will dispatch a action:

//component.facade.ts
import { Actions } from './module.actions'
public increaseCounter():void {
	this.store.dispatch(Actions.increment());
}

And reducer will capture it and change store’s state :

 ...
 on(increment, state => ({
    ...state,
    counter: state.counter + 1
})),
...

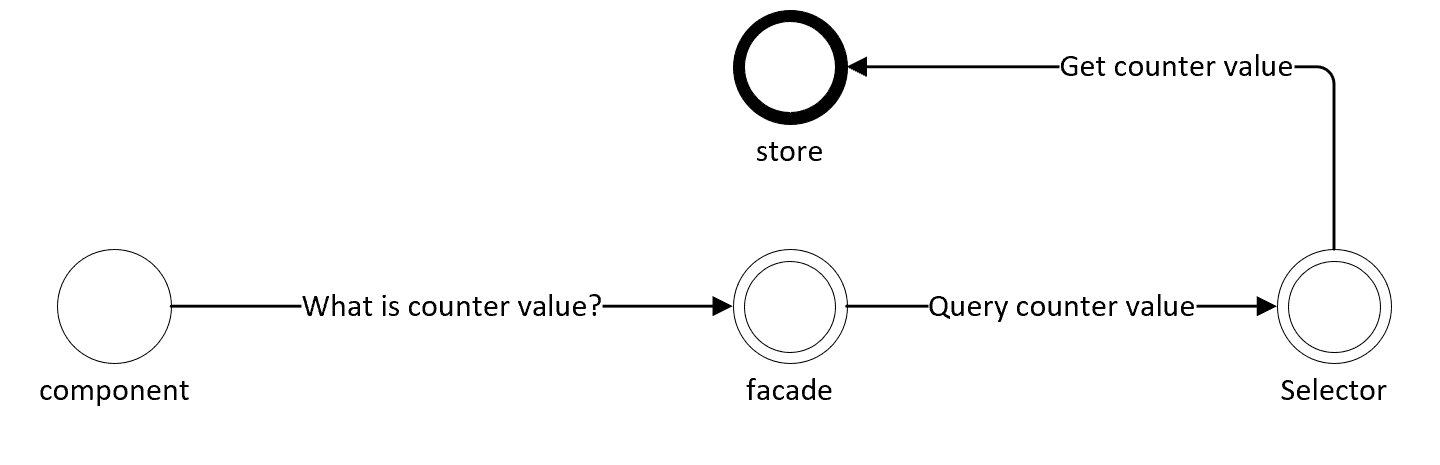

Get State from facade

Get observable variable from state via selector:

//component.facade.ts
public counter$ = this.store.pipe(select(query.getCount));

From component's aspect

//module.component.ts
public counter$ : Observable<number>;
public ngOnInit():void {
    this.counter$ = this.facade.counter$;
    this.facade.increaseCounter();
}

Normally, we assign var as xxx+$ to mark it as an Observable Source. To capture it's inner source, there's two ways to do that:

Declare an observable source in container component, and pass it into child component using html template : For example, if we have a counter-component.bs-container.ts, and we declare a public counter$ = Observable<number>;, and bind it using this.counter$ = this.facade.counter$;, we can use it in container's template:

//counter-component.bs-container.ts
@Component({
  selector: 'counter-component-bs-container',
  template: `
    <counter-component
      [counter]="counter$ | async"
    >
    </counter-component>
  `
})

And we can directly use counter in counter-component.

//counter-component.component.ts
@Input() counter: number;

Subscribe this source in the same place.

//module.component.ts
public counter$ : Observable<number>;
public counter : number;
public ngOnInit():void {
    this.counter$ = this.facade.counter$;
    //bind
    this.counter$.subscribe(i=>this.counter=i);
    this.facade.increaseCounter();
}

Deep in Store : RxJS

In our procedure, we are actually using async observable variables to link all the ‘observable chain’.

A observable can have a subscribe method, to allow you to subscribe it.

this.counter$.subscribe((i) => (this.counter = i))

Also, it have next to allow you to update it.

const observable = new Observable((subscriber) => {
  subscriber.next(1)
  subscriber.next(2)
  subscriber.next(3)
  setTimeout(() => {
    subscriber.next(4)
    subscriber.complete()
  }, 1000)
})

@ngrx/Effect

Effect allow you to do extra codes. As we know, reducer will only update states and send actions. But effect can give ability to run any code when receiving an action. For example, if we send a action increment, we can also write an effect to let it to call an API.

import { Injectable } from '@angular/core'
import { Actions, createEffect, ofType } from '@ngrx/effects'
import * as CounterActions from './module.actions'
export class ProfileEffects {
  constructor(
    private actions$: Actions,
    //your api service
    private api: ApiService
  ) {}
  incrementEffectAPI$ = createEffect(() =>
    this.actions$.pipe(
      ofType(CounterActions.increment),
      switchMap((action) => {
        const apiResult$ = this.api.callSomeAPI()
        return apiResult$.pipe(
          //if success, trigger another increment.
          tap((res) => CounterActions.increment),
          //if fail, send an error action
          catchError((error) => of(ProfileActions.error({ error })))
        )
      })
    )
  )
}

@ngrx: Unit Test

We mainly test reducer and selector.

Test reducer

import * as CounterActions from './module.actions'
import * as fromCounter from './module.reducer'
describe('Profile Reducer', () => {
  it('should ignore undefined action', () => {
    // arrange
    const { initialState } = fromCounter
    const action = createAction('undefined')
    // act
    const state = fromCounter.profileReducer(initialState, action)
    // assert
    expect(state).toEqual(initialState)
  })
  it('should increase', () => {
    // arrange
    const { initialState } = fromCounter
    const action = CounterActions.increase()
    // act
    const state = fromCounter.profileReducer(initialState, action)
    // assert
    expect(state.counter).toBe(1)
  })
})

Test Selector

import { query } from './module.selectors'
import { AppState } from '/component-state.model.ts'
describe('Counter Selectors', () => {
  it('should select counter value', () => {
    // arrange
    const counter = 7
    const state: Partal<AppState> = {
      counter,
    }
    // act
    const selectorResult = query.getCount.projector(state)
    // assert
    expect(selectorResult).toBe(counter)
  })
})
